Home » Products » Wire Harness » Wire to Board » JST 1.0 SHLP
  • JST SHLP Cable Assembly
  • JST SHLP Cable Assembly
1.0mm Pitch JST SHL
Wire Harness » Wire to Board
NO : E355110100071

  • JST 1.0 SHLP

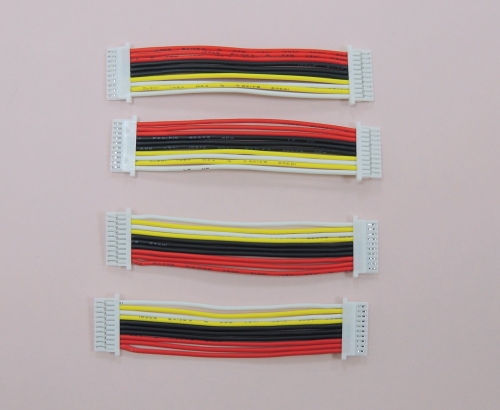

1.0mm Pitch JST SHL Connector Wire Harness
JST SHL 1.0mm Pitch Connector Wire Harness
JST Housing No.: SHLP-06V-S-B, SHLP-10V-S-B, SHLP-12V-S-B
JST Terminal No.:  SSHL-003T-P0.2
Housing: Nylon 66 , UL94V-0
Pitch: 1.0mm
Poles: 2 5 6 10 12 20 Pin
Terminal: Phos. bronze
Plating: Tin plated
Wire Range: Suitable for AWG 28-32
