Camera Link high-speed signal line

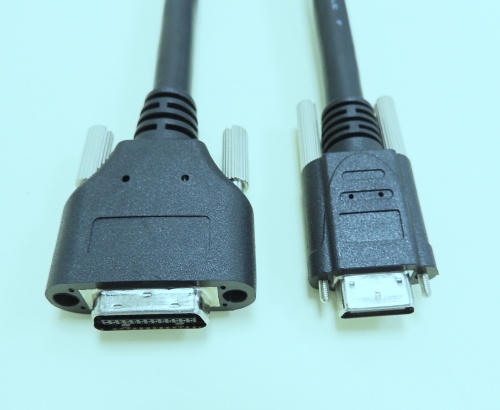

MDR 26-pin male to SDR 26-pin male Camera Link cable

Connection of various high-speed industrial cameras.

Cable length: 3 m

Product Series 1: SDR (Shrink D Ribbon) PoCL. camera link

Number of digits: 26Pin

Pitch: 0.80mm (.0315＂)

Product Series 2: MDR (ribbon type)

Number of digits: 26Pin

Pitch: 1.27mm (.050＂)

Full support for industry standards CameraLink, PoCL and PoCL Lite for industrial cameras.

LVDS transmission electronic circuit.

Cables can be selected based on transmission speed and purpose.

Equipped with PoCL standard and CameraLink/Mini CameraLink standard camera and image capture board-to-board image transmission cable assembly.
