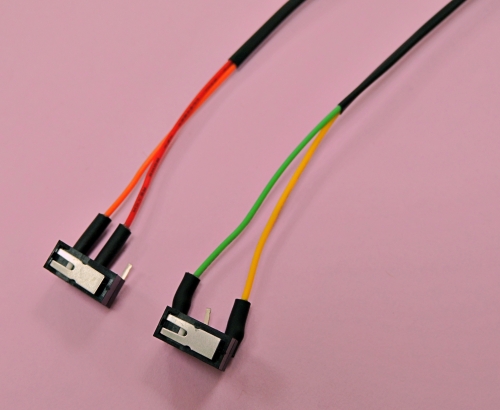

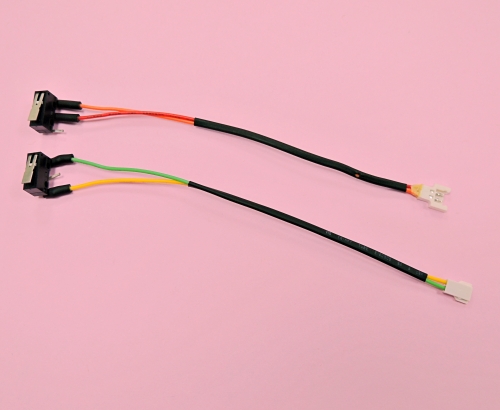

Micro Switch cable assembly | 博音科技有限公司 EDI Cable Assembiy， edi， edicom， cable-edi， Electron Drive Index Co.， Ltd.

Home » Products » Wire Harness » Other Products » Micro Switch cable assembly

SPECIFICATIONS

1.RATING : 5A 125VAC/3A 250VAC.

2.CONTACT RESISTANCE : 30m max.

3.INSULATION RESISTANCE : DC 500V 100M Min.

4.DIELECTRIC STRENGTH : AC 1000V 1 Minute.

5.ELECTRICAL LIFE : 200,000 Cycies.

6.MECHANICAL LIFE : 100,000 Cycies.

Cable: UL1007 24AWG

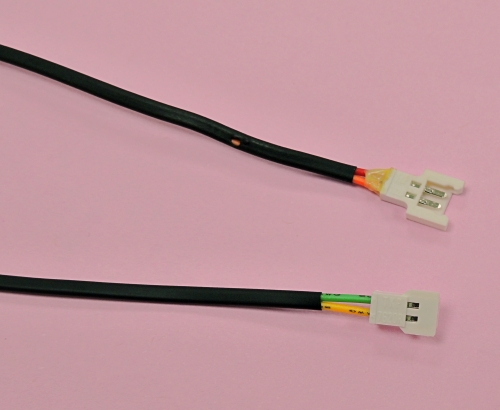

HOUSING: MOLEX 51005

HOUSING: MOLEX 51006

Terminal: MOLEX 51012

Terminal: MOLEX 51013

Material : Nylon UL 94V-0

Electrical rating : UL 125V 1A, AC/DC

2-20 circuits available

Pitch: 2.0mm (.079")

Wire Range: Suitable for AWG 24-28

Terminal: Brass M/F

Plating: Tin plated

Components are UL listed

RoHS, REACH compliant cable design meets environmental standards

Various lengths available
