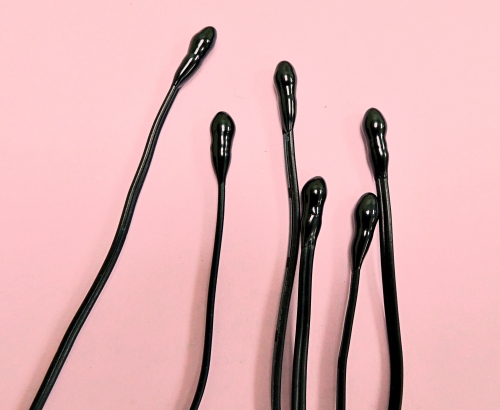

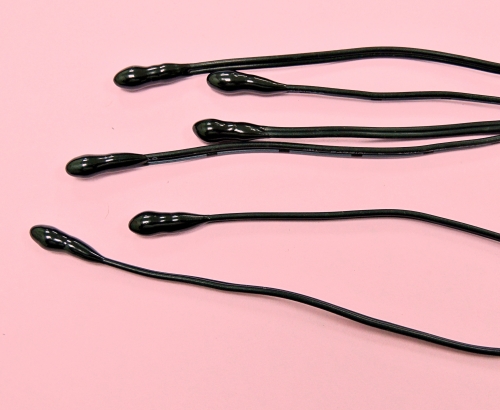

NTC Thermistor Cable | 博音科技有限公司 EDI Cable Assembiy， edi， edicom， cable-edi， Electron Drive Index Co.， Ltd.

SPECIFICATIONS

Temperature rating : -40℃ to 125℃

B value : 3100K ~ 4600K

Determined by rated zero-power : Resistance at 25℃and 85℃

Resistance value at 25℃ :

1 K ohms

2 K ohms

5 K ohms

10 K ohms

15 K ohms

47 K ohms

50 K ohms

100 K ohms

Dissipation constant 2mW/℃

Thermal time constant Typically 15 seconds in air.

Maximum power Rating 10-15 mW at 25℃

Tolerance ±0.5% ±1% ±3% ±5%

Low cost, high stability.

The NTC Series thermistors is a high-performance thermal sensing device.

NTC Series thermistor is similar to Chip thermistor and which is different with flexible lead-wires.

Excellent thermal cycle endurance.

No adjust between the control circuit and the sensor.
