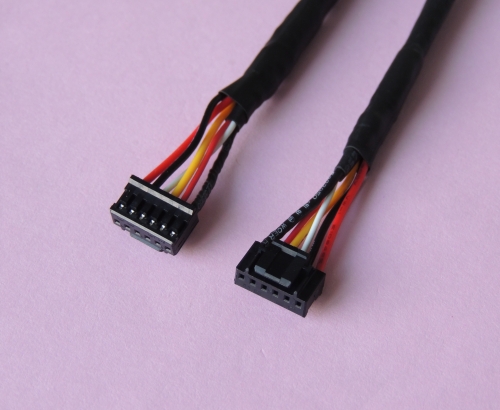

SJH Connector (2.0mm Pitch) | 博音科技有限公司 EDI Cable Assembiy， edi， edicom， cable-edi， Electron Drive Index Co.， Ltd.

Home » Products » Wire Harness » Wire to Board » SJH Connector (2.0mm Pitch)

Features:

• Improve the installation efficiency of Housing and Wafer through Outer Lock mode.

• Set 2 grooves on both sides of the Housing lock to prevent reverse insertion of Wafer.

• Two types of terminals (#22 to #24) (#24 to #30) are used, which are suitable for most wire sizes.

• The surface of Wafer Pin adopts Tin Re-flow Treatment to meet lead-free requirements. Wafers that conform to SMT are available.

Specification:

Number of poles : 2 ~ 16P

Pole spacing : 2.0mm

Rated voltage: AC.DC250V

Rated current: 3A

Withstand voltage: AC1000V/1min

Insulation resistance: 1000MΩ or more

Operating temperature range: -40 ~+85 ℃

Corresponding PCB thickness: 0.8 ~ 1.6mm

Corresponding PCB hole diameter: Ø0.8mm

Wire Size : #22 ~ #30
