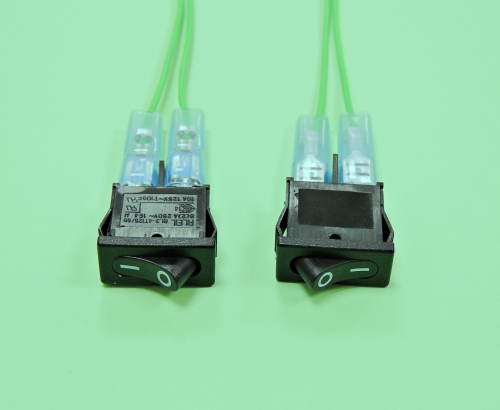

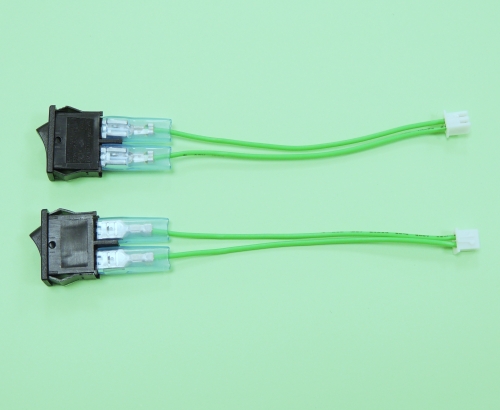

switch cable assembly
Cable: UL1007 24AWG
Terminal: 187(8)
Shell: JST2.5 XH
Switch circuit:
Single pole single throw: on-off (on)-off
Rating: 10A 125VAC / 6A 250VAC μT85
16A 125VAC/ 10A 250VAC
1/3HP 125VAC ~250VAC T105
Contact resistance: max. 30mΩ.
Insulation resistance: DC 500V 100M Ω (minimum value)
Withstand voltage: AC 1000V 1 minute
Operating force: 800+300 grams.
Electrical Life: 10,000 cycles at full load.
Operating temperature range: -25°C~+85°C.
Widely used in internal switch connection wiring of household appliances, computers, consumer electronics equipment, automotive equipment, machinery and equipment, industrial instruments, etc.
|
