DETAIL INFORMATION

1. MATERIAL:

HOUSING: HIGH THERMOPLASTIC, UL94V-0, BLACK

CONTACTS: PHOS-BRONZE, 50u" GOLD PLATING ON CONTACT AREA, NICKEL UNDERPLATING OVERALL SHIELD: COPPER ALLOY, NICKEL PLATING

2. NUMBER OF PORT: 1*4

3.SPEED: 10G

4. LED: YELLOW/ GREEN

5. OPERATING TEMPERATURE: 0°C~+70°C

6. MATING FORCE: 4 POUNDS MAX.

UNMATING FORCE: 4 POUNDS MAX.

7. DURABILITY: 750 MATING CYCLED MIN.

8. CAVITY CONFORMS TO FCC RULES AND REGULATIONS PART 68, SUBPART F.

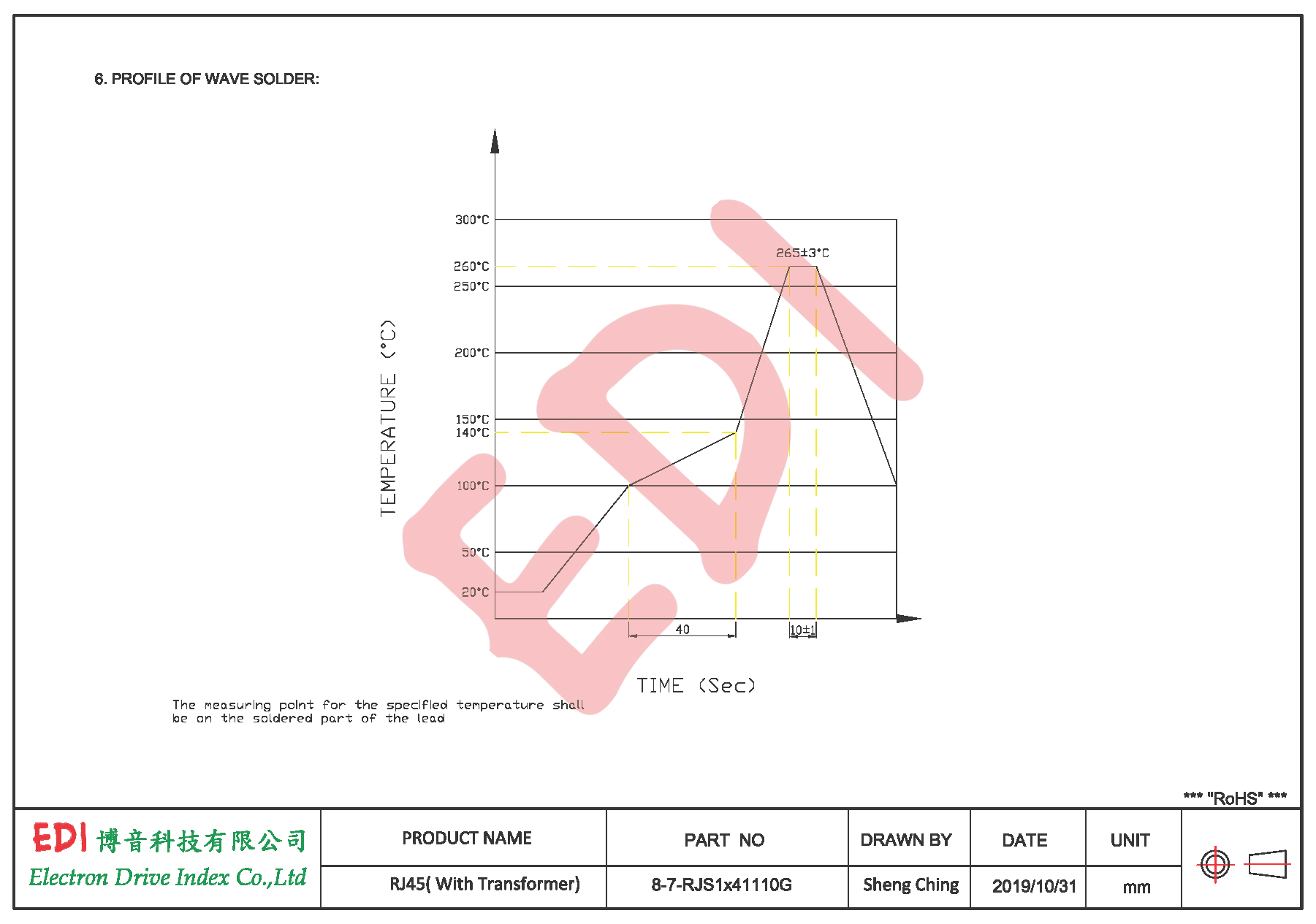

9. THE PART IS RECOMMENDED FOR WAVE SOLDERING, THE SUGGESTED PEAK WAVE SOLDERING CONDITION IS 260°C MAX. AND 10 SECONDS MAX.
