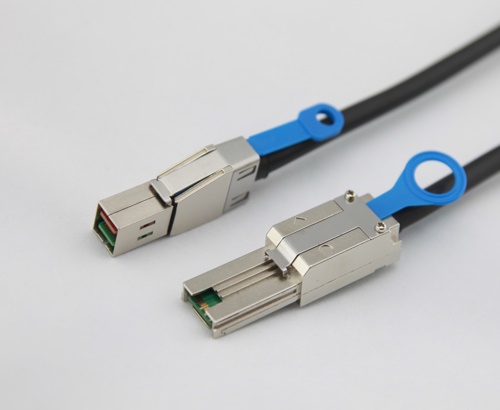

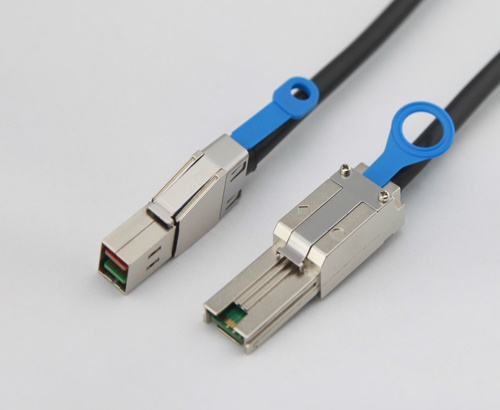

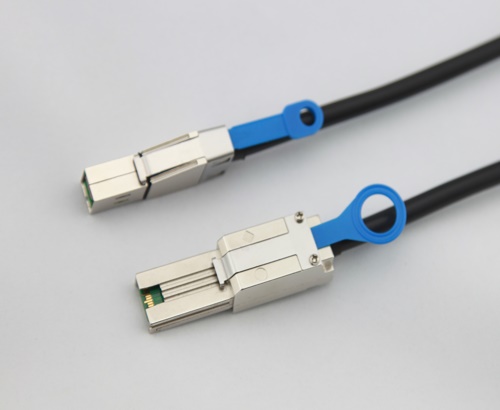

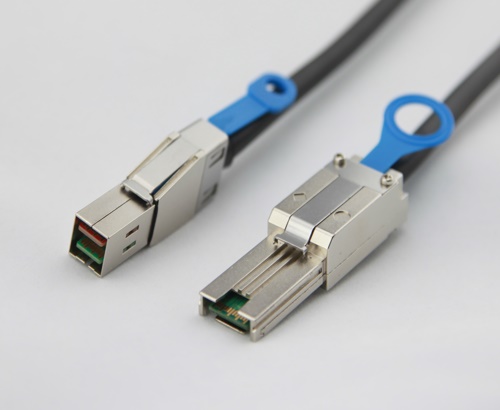

This 100cm SFF-8644 to SFF-8088 cable is an external hybrid SAS cable designed to connect older Mini-SAS (SFF-8088) devices and newer HD Mini-SAS (SFF-8644) devices. Supporting data transfer rates up to 6 Gbps per channel, this cable is ideal for server and data center applications.
Product Information and Specifications
This 100cm cable (also often labeled 0.5m/1.6ft) is a compact solution for rack-mount environments where cable length requirements are extremely limited for storage device connections.
Connectors:
SFF-8644: Male, High-Density (HD) Mini-SAS connector (external).
SFF-8088: Male, Mini-SAS connector (external, 26-pin).
Data Transfer Rate: Supports up to 6.0 Gbps per channel (or per channel). Compatibility: Fully compliant with SAS 2.1 and SAS 3.0 interface specifications.
Wire Gauge: Typically AWG26 or AWG30 dual-axis, designed for high bandwidth and low signal attenuation.
Impedance: 100 ohms.
Applications: Commonly used in RAID systems, data centers, servers, external storage systems, and switches to achieve seamless compatibility between different SAS versions.
|
