Molex 2510 2.54mm pitch M/F
Wire Harness » Wire to Wire
NO : 8821

  • Molex 2510 2.54mm pitch M/F

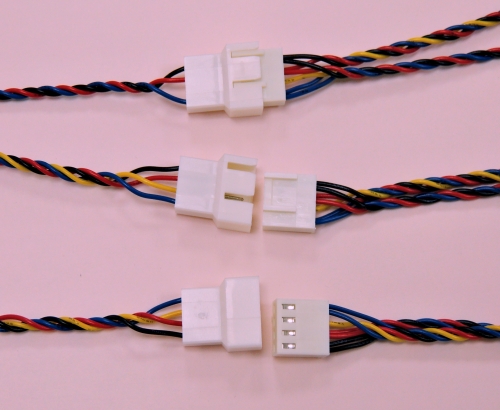

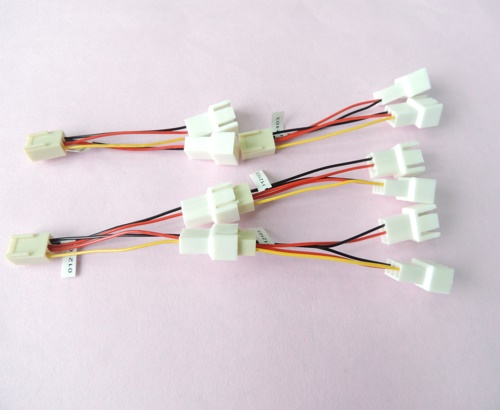

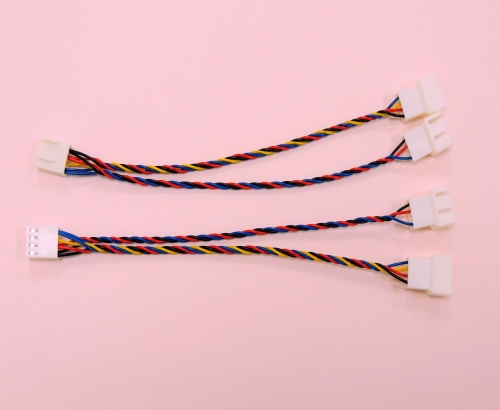

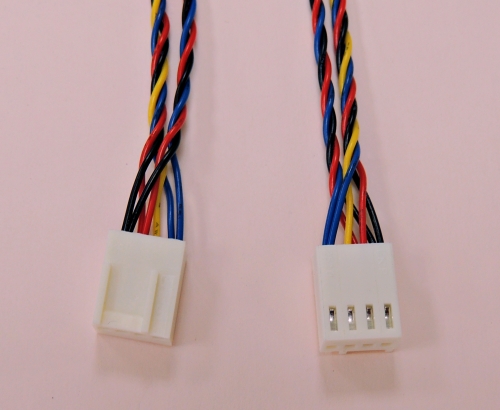

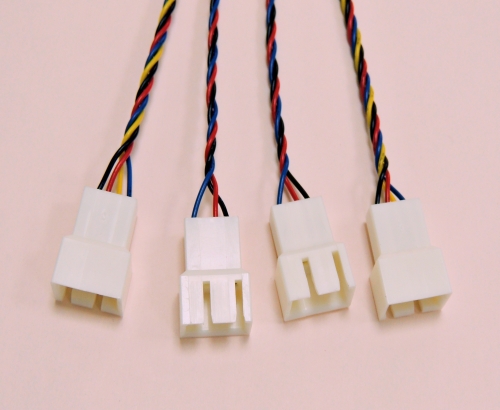

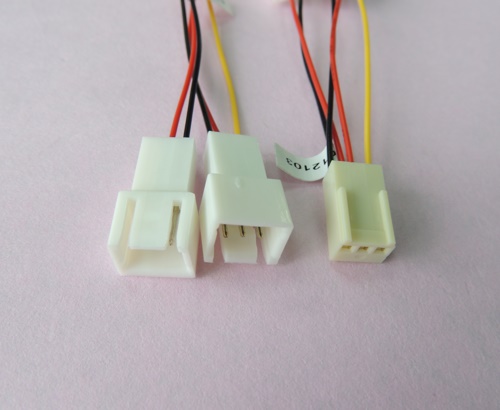

Molex 2510 2.54mm pitch M/F Wire TO Wire Cable Assembly
molex 2510 2.54mm pitch (M/F)
Material: Nylon UL 94V-0 or UL 94V-2
Current rating: 2A, AC/DC
Voltage rating: 250V, AC/DC
Pitch: 2.54mm
Poles: 2-11pin
Terminal: Brass M
Terminal: Phos. bronze F
Plating: Tin plated
Wire Range: Suitable for AWG 22-28
Components are UL listed
RoHS, REACH compliant cable design meets environmental standards
Various lengths available
It is widely used in the internal connection wiring of home appliances, computers, consumer electronic devices, automotive equipment, machine equipment, and industrial instruments.
