Product Specifications

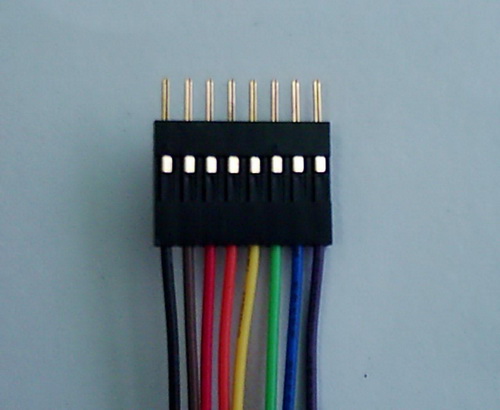

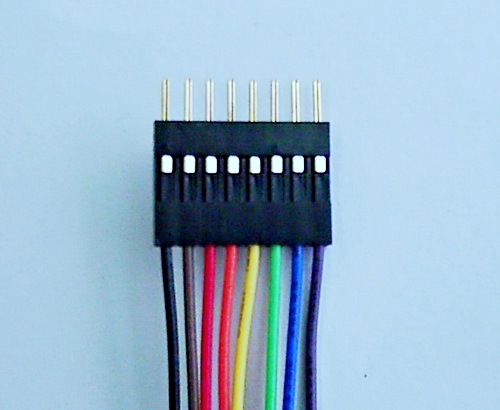

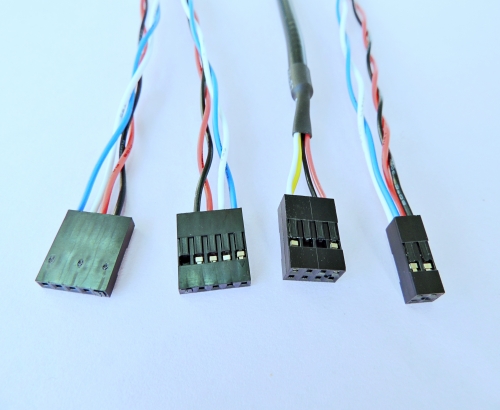

Dupont 2.54mm

Housing: PTB, UL94V-1

Pitch: 2.54mm

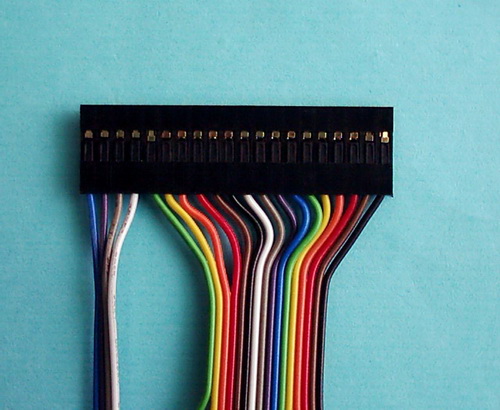

Poles: 1-28pin (Single row)

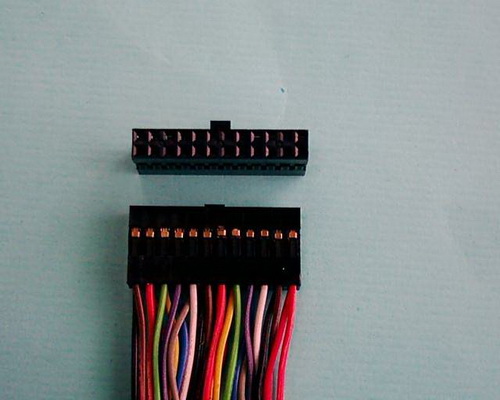

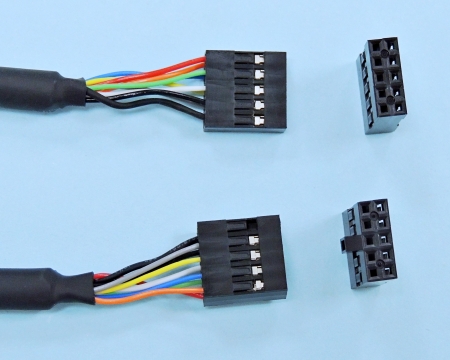

Poles: 4-80pin (Double row)

Terminal: Brass M/F

Plating: Tin plated, Gold Plated

Wire Range: Suitable for AWG 22-28

Various lengths available

UL certified factory

RoHS, REACH compliant cable design meets environmental standards

It is widely used in the internal connection wiring of home appliances, computers, consumer electronic devices, automotive equipment, machine equipment, and industrial instruments.

Product Description

The DUPONT 2.54mm Wire Harness Assembly offers professional-grade connectivity solutions with precision-engineered terminals in both single and double row configurations. Featuring high-quality brass terminals with optional gold or tin plating, this assembly ensures reliable electrical connections. The UL94V-1 rated PTB housing provides excellent durability and fire resistance. Compatible with AWG 22-28 wire ranges, the assembly accommodates 1-28 pins in single row and 4-80 pins in double row arrangements, maintaining a consistent 2.54mm pitch. This versatile wire harness assembly is ideal for applications requiring precise, secure connections in electronic systems and equipment.
