JST SM 2.5mm
Wire Harness » Wire to Wire
NO : 2320

  • JST SM 2.5mm

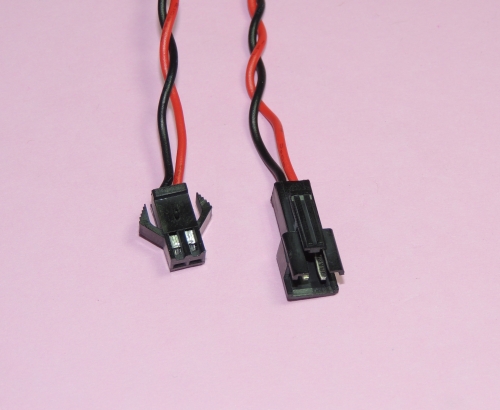

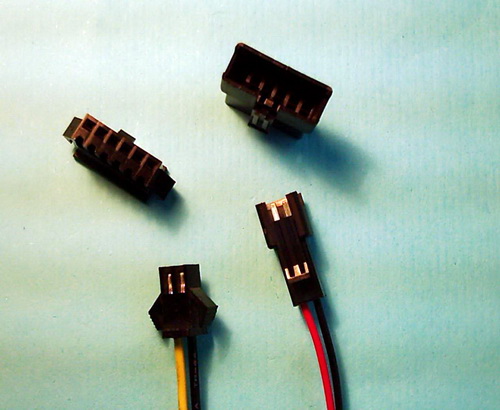

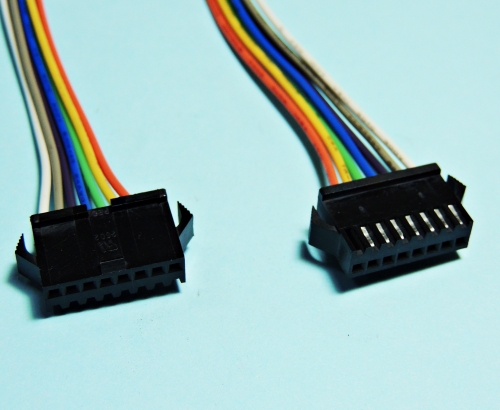

JST SM2.5mm Wire to Wire Cable Assembly

JST SMR 2.5mm

JST SMP 2.5mm

Housing: Nylon 66 , UL94V-2 M/F
Pitch: 2.5mm
Poles: 2-12pin
Terminal: Brass M/F
Plating: Tin plated
Wire Range: Suitable for AWG 22-26
Components are UL listed
RoHS, REACH compliant cable design meets environmental standards
Various lengths available
It is widely used in the internal connection wiring of home appliances, computers, consumer electronic devices, automotive equipment, machine equipment, and industrial instruments.
