2.5mm Board-In SAN Connector Housings
The design of the housing of these crimp style, vertical, Board-In 2.5 mm pitch SCN Connectors allows easy insertion and secure locking of the contact into the PCB for high-density applications.

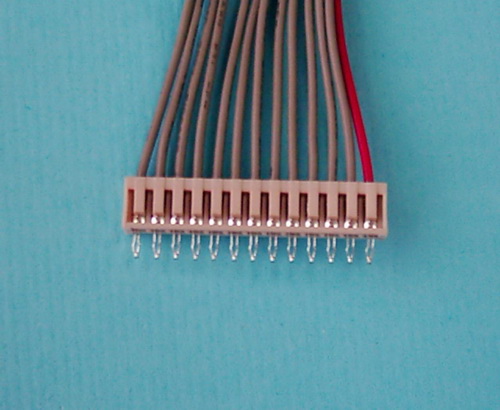

JST SCN 180° 2.5mm Board-In type
Housing: Nylon 66 , UL94V-2
Pitch: 2.5mm
Poles: 2-16pin
Terminal: Brass
Plating: Tin plated
Wire Range: Suitable for AWG 26-30
Various lengths available
UL certified factory
RoHS, REACH compliant cable design meets environmental standards
It is widely used in the internal connection wiring of home appliances, computers, consumer electronic devices, automotive equipment, machine equipment, and industrial instruments.
|
