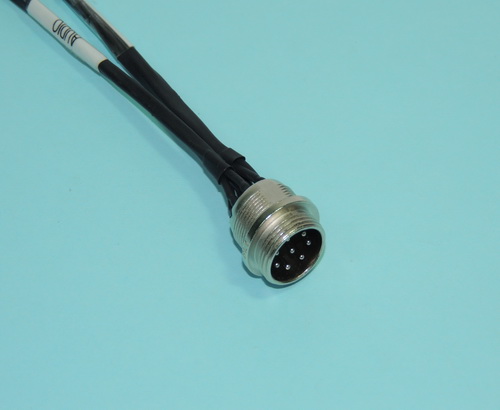

GX16 cable Assemblies

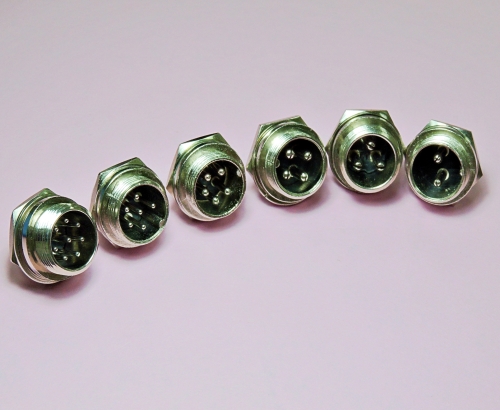

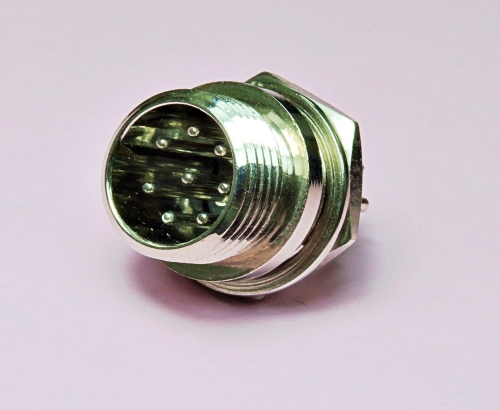

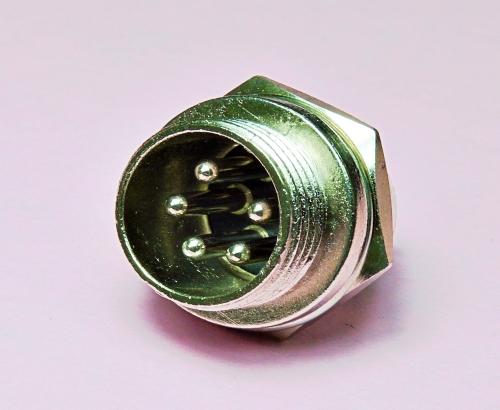

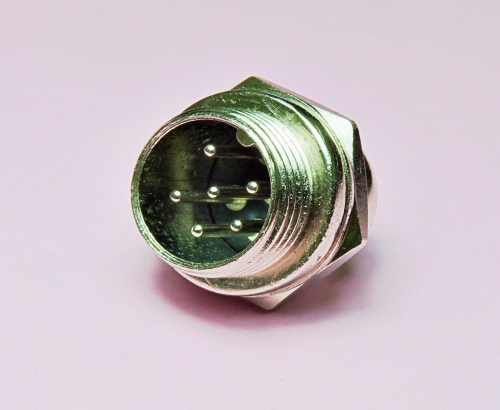

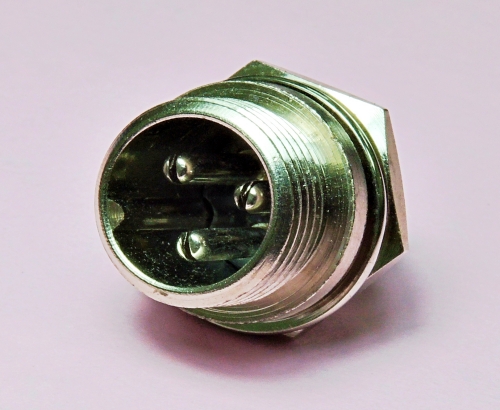

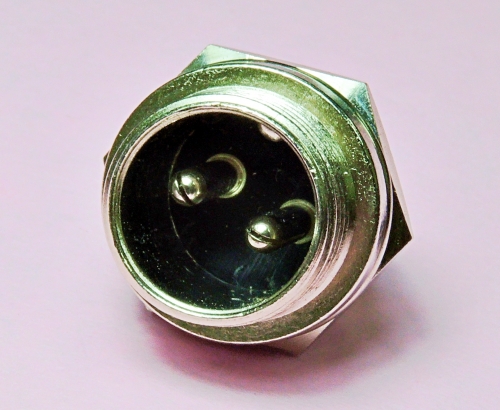

Connector: GX16 Male aviation socket connecto
Cable: Various lengths available PVC wire.
Size:2 core / 3 core / 4 core / 5 core / 6 core / 7 core / 8 core
Plug diameter: 16 mm
Reted current : 5A
Reted voltage : 125V
Operating voltage limut(AC.V.rms):200
Withstanding voltage(AC.V.rms)1minute: 1000
Insulation resistance(MΩ MIN)at DC 500V: 1000
Contact resistan (MΩ MIN)at DC 1A: 3
Solder intemal diameter: 1.4 , 1.2 , 0.8
Customized Wire Cable Assembly:
you can select the type of connector, wire length, color, shielding, injection molding, etc. you can also add tape, ties, labels, according to your machine's requirements. Our engineering team will customize exclusive products for you.
GX16 connectors, known as Aviation connectors, are now widely used in aviation, navigation, data acquisition systems, Inclinometer, computer automation measurement and control systems, Mechnical equipment, Audio&Video, Communications, Automotive and other industries.
|
