Home » Products » Power Cable » DC » General Performance IEC Inlet Filter
Power Cable » DC

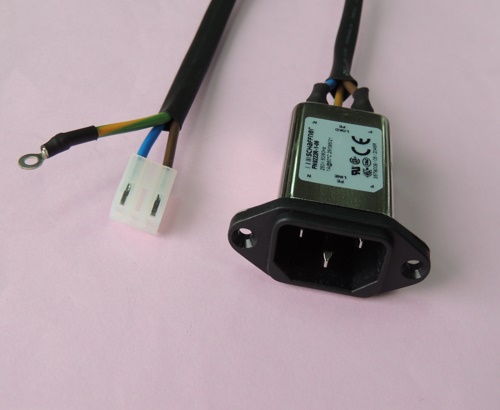

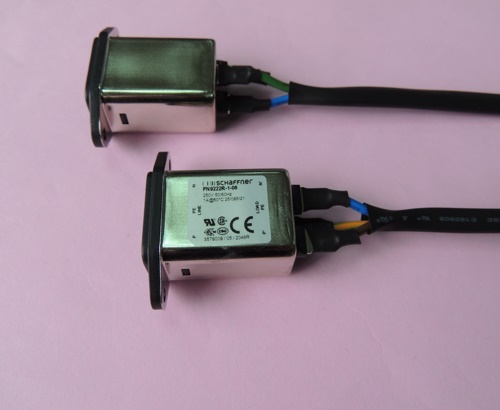

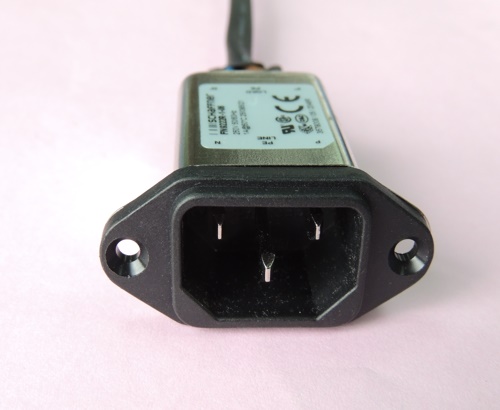

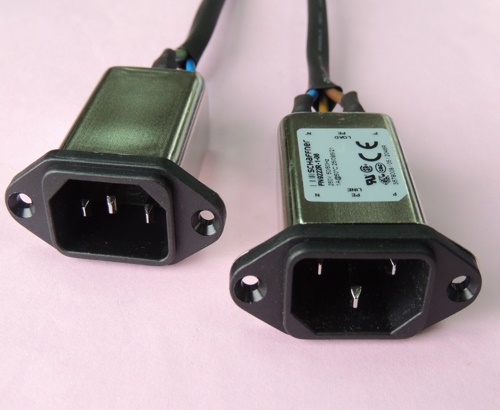

  • General Performance IEC Inlet Filter

Rated currents up to 20 A
Maximum continuous operating voltage 250 VAC, 50/60 Hz
Operating frequency dc to 400 Hz
Rated currents 1 to 20 A @ 50°C
Approvals by rated current 1 to 10 A (ENEC, CQC)
16 A (ENEC, CQC) for 16 and 20 A types
1 to 20 A (UL, CSA)
High potential test voltage P –> PE 2000 VAC for 2 sec (standard types)
P –> N 250 VAC for 2 sec (all Z types)
P –> N 1000 VAC for 2 sec (1 to 10 A types, not Z types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 1100 VDC for 2 sec (16 and 20 A types, not Z
types)
Protection category IP 40 according to IEC 60529
Temperature range (operation and storage) -25°C to +85°C (25/85/21)
Design corresponding to UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (X to XX A,
not Z types)
Flammability corresponding to UL 94 V-2 or better

Optional medical versions (B type) according to
IEC/EN 60601-1
Snap-in versions (S and S1 type)
Hot inlet versions (HI type)
Optional overvoltage protection (Z type)
