Home » Products » Wire Harness » Wire to Wire » JST XH 2.5mm Plug Male / Female
  • JST XH 2.5
  • JST XH 2.5
  • JST XH 2.5

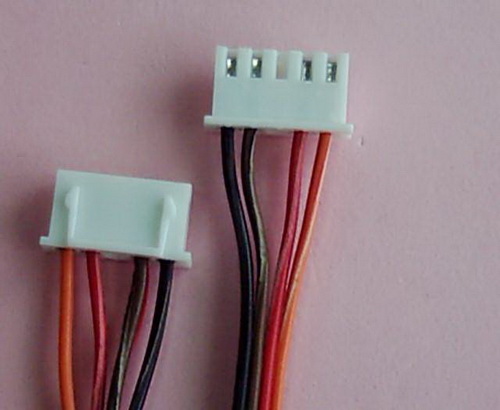

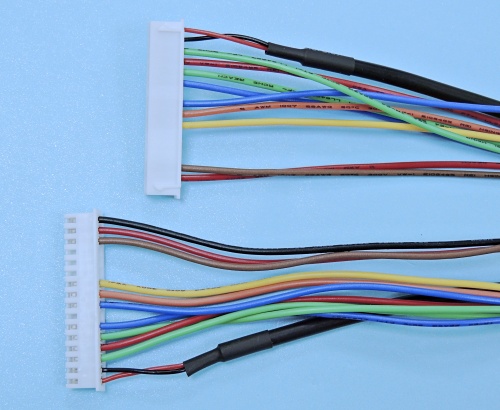

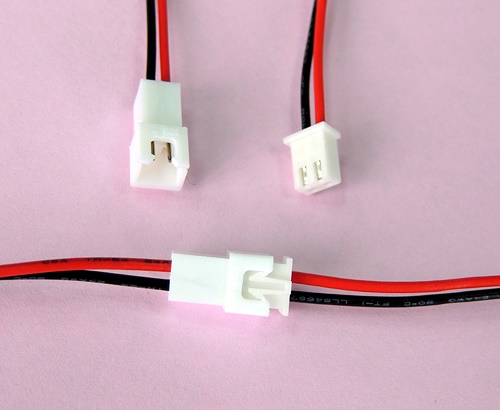

JST XH 2.5mm connector plug male and female with wire
Wire Harness » Wire to Wire
NO : 5011

  • JST XH 2.5mm Plug Male / Female

JST XH Male/Female 2.5mm Cable Assembly Wire to Wire, Wire to Board

JST XH 2.5mm (M/F) Wire to Wire,Wire to Board

Housing: Nylon 66 , UL94V-2
Pitch: 2.5mm
Poles: 2-20pin
Terminal: Brass or Phos. bronze
Plating: Tin plated
Wire Range: Suitable for AWG 22-28
Components are UL listed
RoHS, REACH compliant cable design meets environmental standards
Various lengths available
It is widely used in the internal connection wiring of home appliances, computers, consumer electronic devices, automotive equipment, machine equipment, and industrial instruments.
